Electric Magnetic Lock for Tempered Glass Door
Product information "Electric Magnetic Lock for Tempered Glass Door"
DC 12V 600lbs 280kg zinc metal flame retardant sliding device high security tempered glass door magnetic lock
Single door electric lock with mortise mount is for glass door, wooden door, small size door. The material is aluminum. Anti-residual magnetism is its selling point and makes electric lock more durable.
280kg Holding Force Embedded Electric Magnetic Lock Electromagnetic Lock Access Control.
This electric magnetic lock consists of an electromagnet and an armature plate which are used for access control door locks. By attaching the electromagnet to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut. When switched off, the door opens. It is suitable for wooden, glass, metal, fire resistant and other doors.
1. Use magnetic power to lock the door, 280kg(617.29lbs) holding force.
2. Made of high strength aluminum alloy material with hard anodized processing, heat dissipation and anti-corrosion with high reliability.

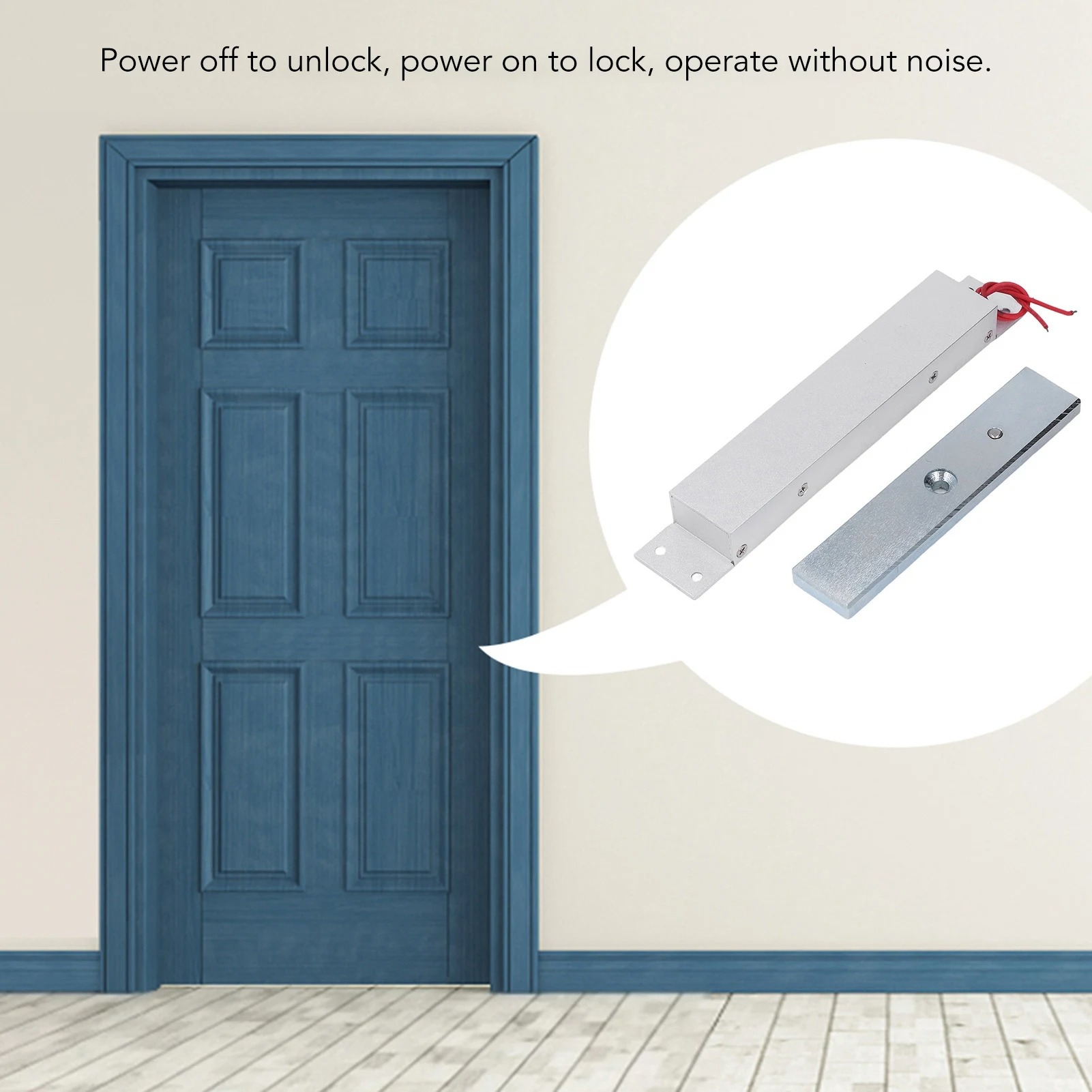

3. Secure NC mode: unlocked when power off, locked when power on.
4. Suitable for wooden door, glass door, metal door, fire-proof door.
5. Anti magnetic design, wear resistant material manufacturing.
6. High quality electromagnetic material vacuum treatment, double lock body insulation treatment.
7. Comply with environmental protection requirements, low power consumption, super quiet design, no noise during operation.
8. Various unlocking function options: keys, manual, remote control, intelligent induction, telecontrol, and so on, directly matching with building intercom.
9. Unique integrated design, easy installation.
Property
| Parameters | |
| Lock Size: | 250Lx48.5Wx25H(mm) |
| Armature plate: | 180Lx38Wx11H(mm) |
| Holding Force: | 280kg(600Lbs) |
| Voltage: | 12/24VDC+10% |
| Current Draw: | 12V/500mA 24V/250mA |
| Suitable for: | Home or office use, For Wooden door , Glass door ,Metal door , Fireproof door, Anti-theft gate |
| Surface Temp: | ≤+20C |
| Operating Temp: | 10~+55C(14-131F) |
| Suitable Humidity: | 0~90%(non-comdensing) |
| Finishes for Shell: | Anodized alninum |
| Finishes for Magnetic: | Zinc |
| Finishes for Armature: | Zinc |
| Weight: | 2kg |
| Standard Packing: | 1Pc/Box, 12Pcs/Carton |
