Glass Door fitting set for Interior Glass Doors
Product information "Glass Door fitting set for Interior Glass Doors"
Hinges Hardware for Glass Doors / Glass door Lock set with Hinges
Heavy glass door lock case made of stainless steel in a finely ground surface with whisper latch for significantly reduced closing noise. The double clamping follower permanently fixes the square pin of the door handle pair by means of tight springs, thus creating a non-positive connection between lock follower and square. Wobbling of the pair of handles is minimized. Due to the enclosed handle pair adapters 16/18 mm you can combine all stainless steel handle pairs with this glass door lock.
Important: Installation Specifications To ensure correct installation, it is essential that you indicate whether you wish to use this handle on the selected door when placing your order. This information allows us to accurately drill the necessary holes in the tempered glass, specifically adapted for the installation of this type of lock.
Please note that once a tempered glass door has been drilled, it is not possible to modify or adjust the holes. Due to the nature of tempered glass, any subsequent alteration may compromise the integrity of the material and its functionality. For this reason, it will not be possible to adapt a door that has already been drilled for another type of handle that was not specified during the purchase process.
We recommend that you carefully review the product specifications and confirm all necessary details before completing your order.
Special Offer
Take advantage of our exclusive offer: when you purchase one of our handles together with any of our compatible doors, shipping will be completely free. This offer is designed to give you greater value and convenience when making your purchase.
Please note that if the handle is purchased separately, i.e., without a compatible door, additional shipping costs may apply. We recommend that you check the compatibility of the selected products before finalizing your purchase to ensure that you can benefit from this special offer.
| Color: | Stainless Steel |
|---|---|
| Types Of Hinges1: | Matt Stainless Steel |

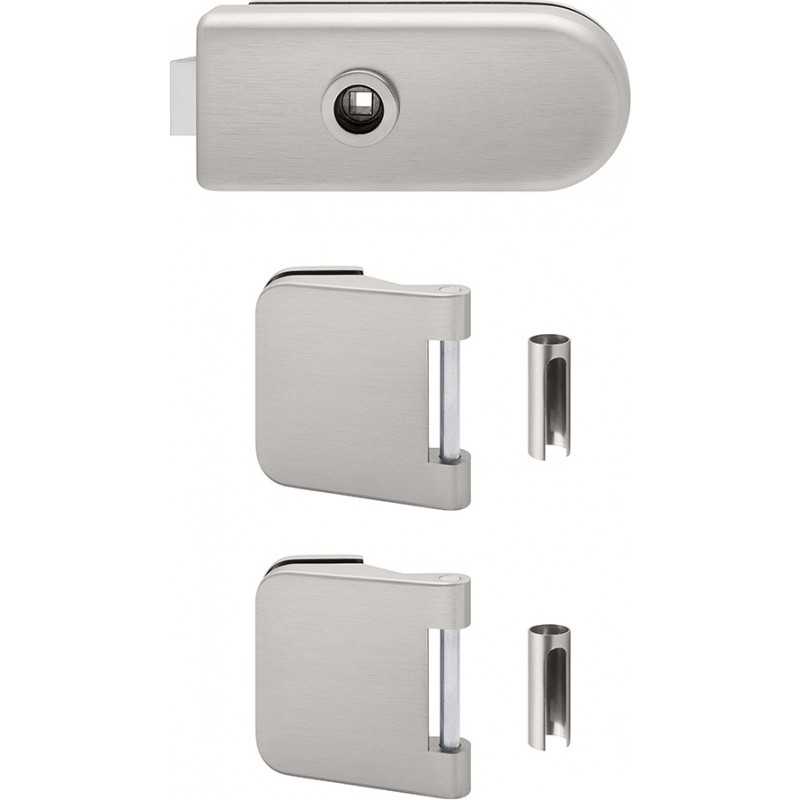

Scope of delivery
✔ 1x Pair of door handles
✔ 2x Door hinges
✔ 1x Glass Door Lock Case
✔ 2x Band cover cap / slip-on sleeve for frame part
✔ 1x Assembly Instructions
Product Features
•
Materials: Stainless steel
• For handle neck diameter: 16 mm and 18 mm
• For door thickness: 8 mm (5/16") 10 mm (3/8") 12 mm (1/2")
• For frame part height: 48.5 mm
• Mounting direction: Can be used on both sides
• Trap (material): Metal trap
• Band type / structure: Three-part hinge for central frame part
• Nut type: Clamping nut (for force-locking of the square)
• Country standard: universal ‐ non-standard
• Screw connection (visibility): concealed
• Screw connection (technical): continuous
