Hidden hardware Kit for Wooden Door (Without Button Rail)
$224.00*
Available in 15 days, delivery time 15 - 20 days
Product information "Hidden hardware Kit for Wooden Door (Without Button Rail) "
Product information "Soft Closing Hidden Hardware Kit for Wooden Door (without Button Rail)
* If you need this hardware kit for a double door, please set the quantity to "2" in the selection above.
* This item is free of shipping costs when purchased together with a door. Otherwise, you may be charged an additional amount for shipping costs.
* This product only contains the hardware but no door panel!

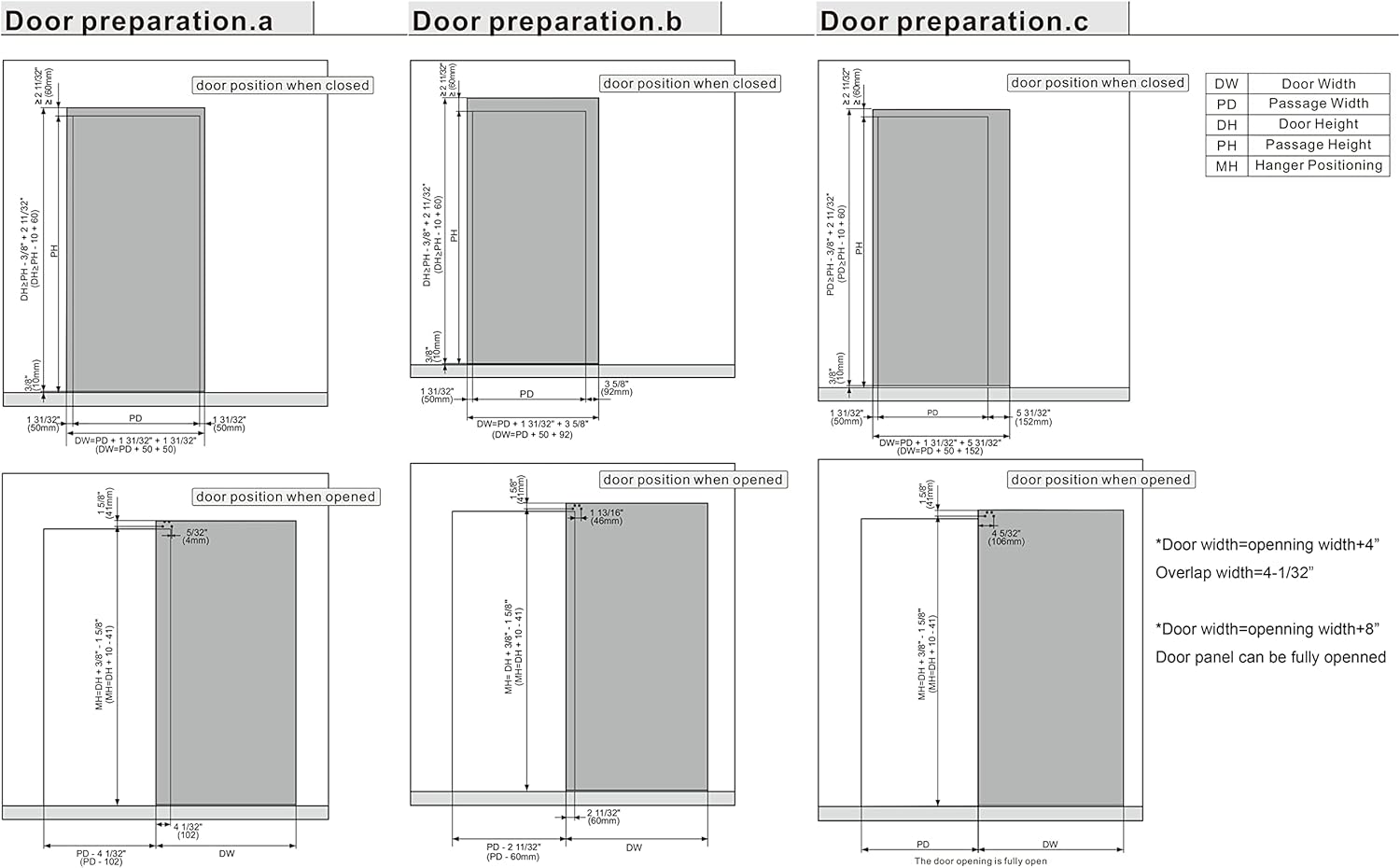

Calculation of door dimension in relation to the wall opening:
To install this hardware correctly, you must have additional space above your door opening.For most barn doors, we recommend adding 1 inch of height and 2 inches of width to the door opening.
However, this hardware requires a different height configuration:
4 additional inches of height must be added, not just one.
Door drilling and preparation
This hardware can be installed on wooden doors or wood-framed doors (such as those with glass or mirror inserts), but requires specific drilling and cutting for proper installation.
- If you purchase this hardware together with your door (in the same order):The necessary drilling will be done at no additional cost. In this case, select the “Hardware Only” option from the options available above.
- If you purchase the hardware after purchasing the door: You must select the “Hardware with Drilling” option from the options available. This is because drilling holes in a door that is already in production requires additional work and incurs an extra cost.
Important:
If a long time has passed since you ordered your door, it may be at such an advanced stage of production that it is no longer possible to apply this hardware. We recommend checking the status of your order before choosing this option.
Quiet & smooth running
The maintenance-free ball bearing runners ensure extremely smooth running - even after many years of intensive use. Floor guide and pole provide stability and prevent unpleasant swinging.
Easy installation
The installation of this hardware kit is easy even for inexperienced hobby craftsmen. All mounting accessories including high-quality screws and dowels are included. The sliding system is mounted directly on the wall and is also suitable for door openings with frame. Each delivery contains a detailed installation manual.
| Sliding Hardware For: | Wooden Door |
|---|
Wall mount sliding system with invisible track in front; Suitable for wood doors weighing up to 176 lb (80 kg)
Suitable for door thickness 1-1/4"~1-3/4";
34" track fit openning width 28"~34"
38” track fit openning width 30"~34"
42" track fit openning width 34"~38"
48" track fit openning width 40"~44"
52" track fit openning width 44"~48"
The track can be cut for smaller door panel
Its unique hardware and concealed track create the illusion of a floating door.
Standard example:
If your opening measures 24“ x 80”, you should order a 26“ x 81” door for use with traditional hardware.
Example with this specific hardware:
For a 24“ x 80” opening, you should order a 26“ x 88” door.
Specifications
• Suitable for door thickness 1-1/4"~1-3/4";Suitable for wood doors weighing up to 176 lb (80 kg).34" track fit openning width 44"~48";For detailed information,please check door preparation.The track can be cut for smaller door panel.

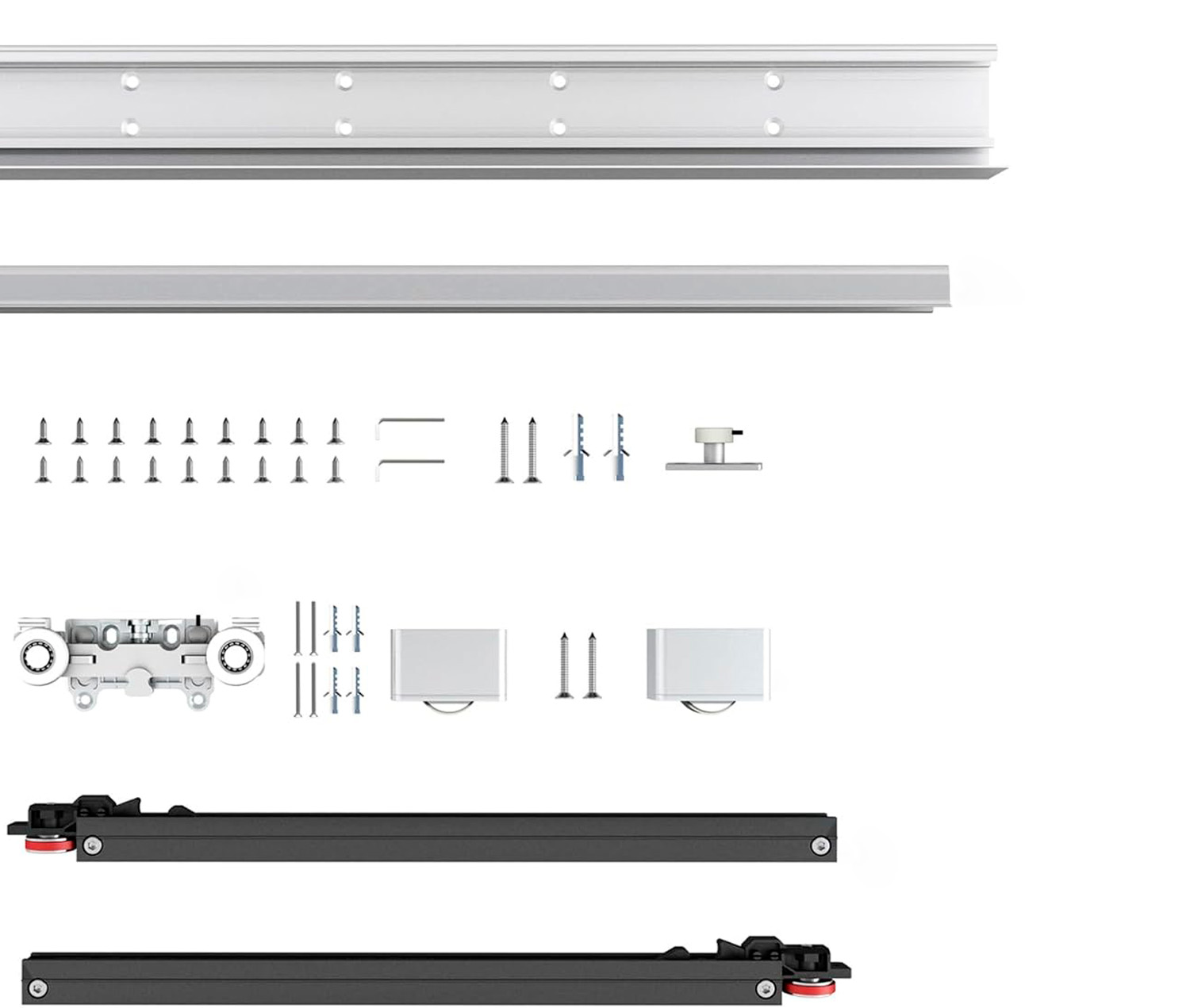

• Full set hardware including:Top rollerX1,Soft close mechanismX2,Top L trackX1,End capX2,Bottom wheelX2,Bottom N trackX1,Floor guideX1
• Remove baseboard/door frame before installation
• Concealed Sliding Door Hardware Material:Aluminium alloy
• Wall mount sliding system with invisible track in front;No lower track on the floor.Its unique hardware and concealed track create the illusion of a floating door.

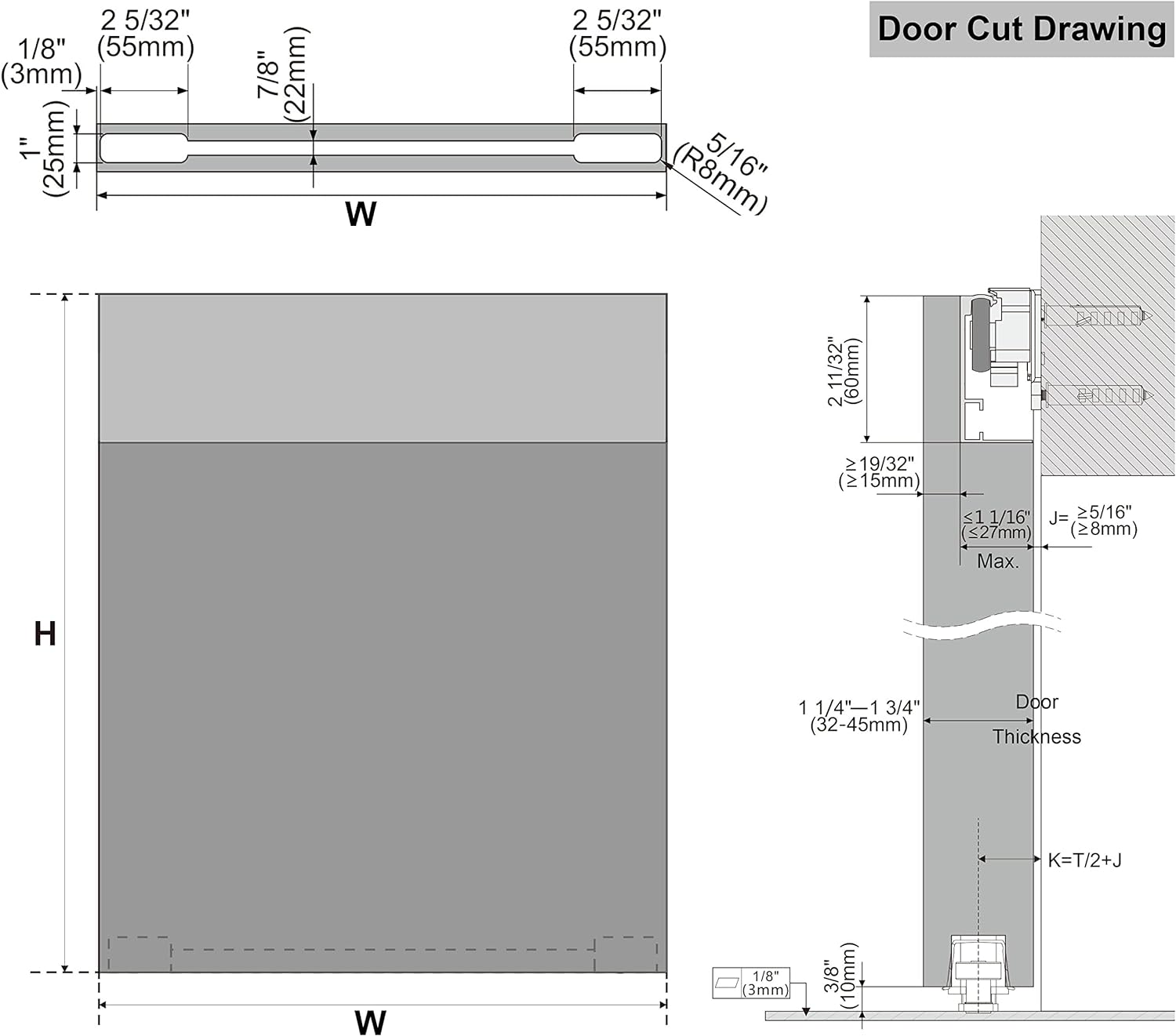

• Door panel have to be cut L channel in the top and U channel for tracks to fit in.
• Soft closing mechanism
