Soft Closing Hidden Hardware Kit for Wooden Door (with Button Rail)
$262.00*
Available in 15 days, delivery time 15 - 20 days
Product information "Soft Closing Hidden Hardware Kit for Wooden Door (with Button Rail)"
* If you need this hardware kit for a double door, please set the quantity to "2" in the selection above.
* This item is free of shipping costs when purchased together with a door. Otherwise, you may be charged an additional amount for shipping costs.
* This product only contains the hardware but no door panel!
Important:
If a long time has passed since you ordered your door, it may be at such an advanced stage of production that it is no longer possible to apply this hardware. We recommend checking the status of your order before choosing this option.
| Sliding Hardware For: | Wooden Door |
|---|

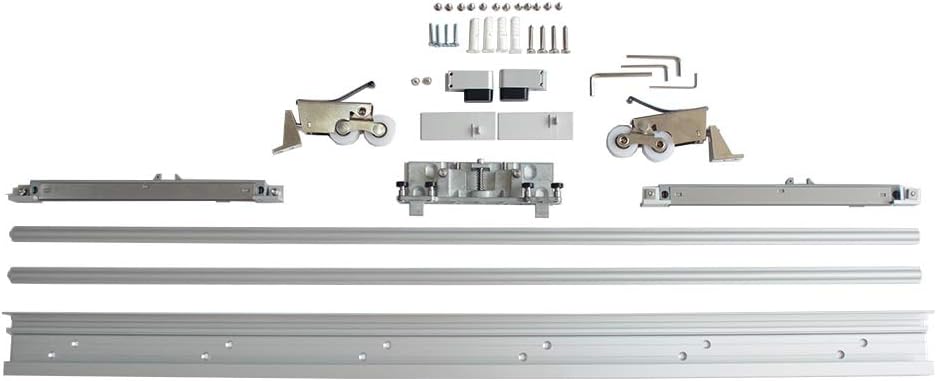

Scope of Delivery:

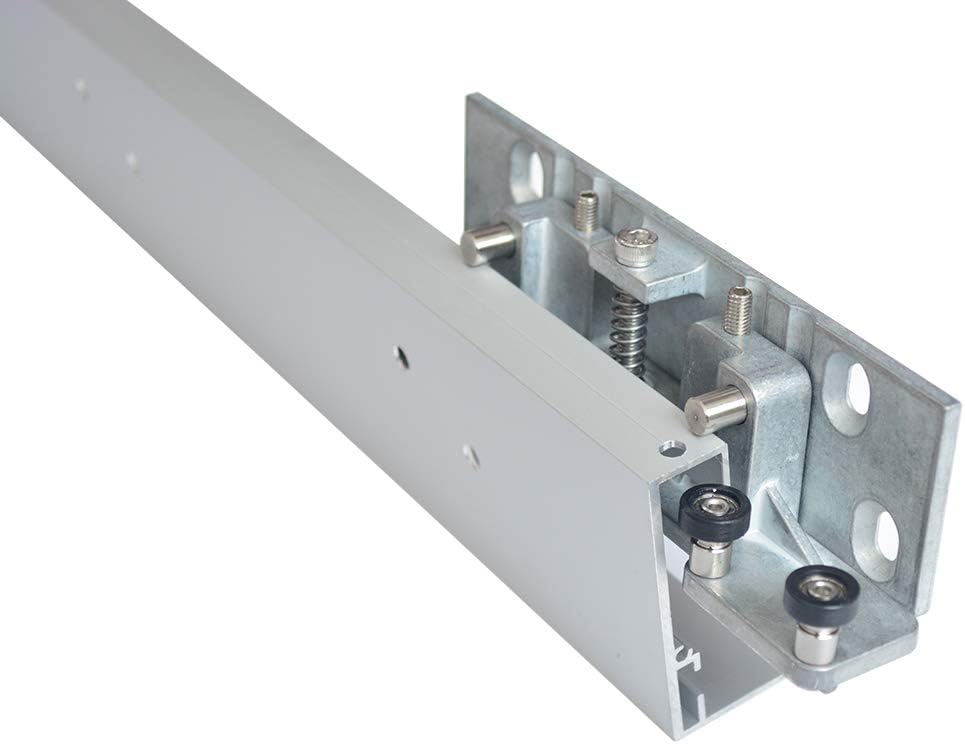

✔ x1 wall mount roller
✔ x1 sliding track
✔ x2 end cap
✔ x2 soft close mechanism

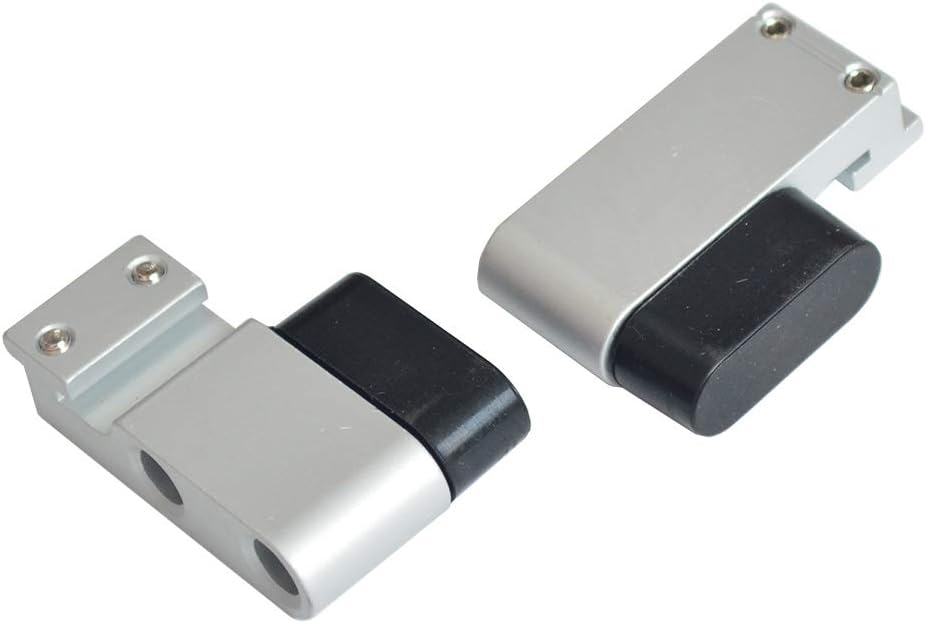

✔ x2 stop

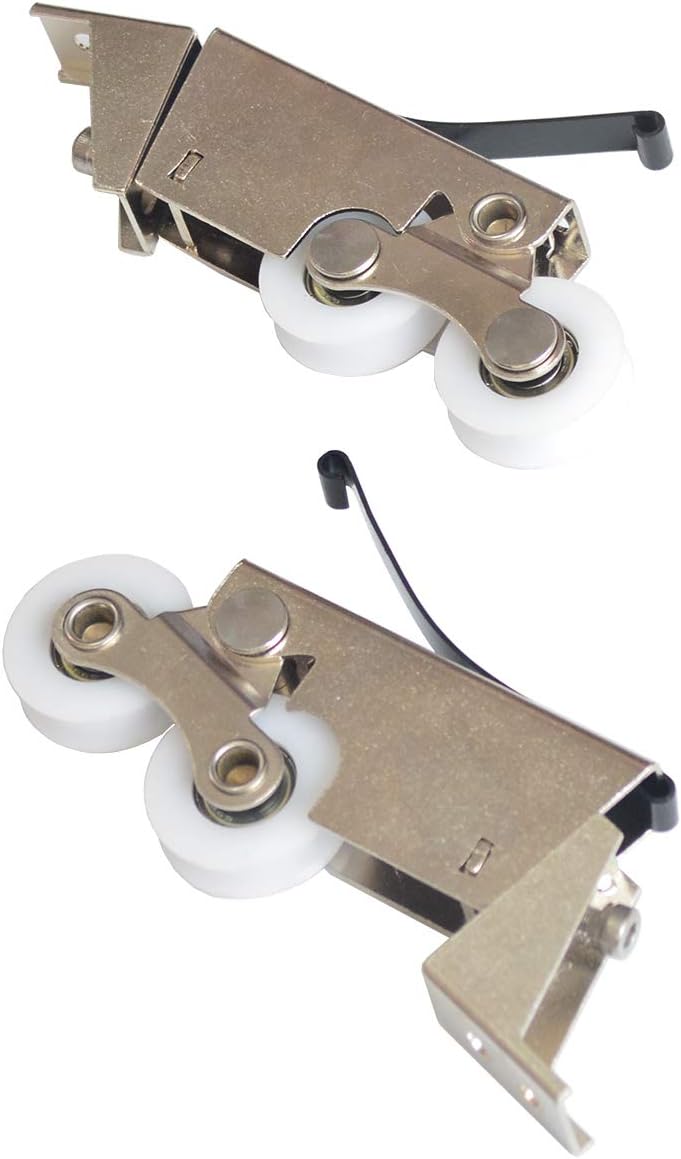

✔ x2 floor roller
✔ x2 L bracket

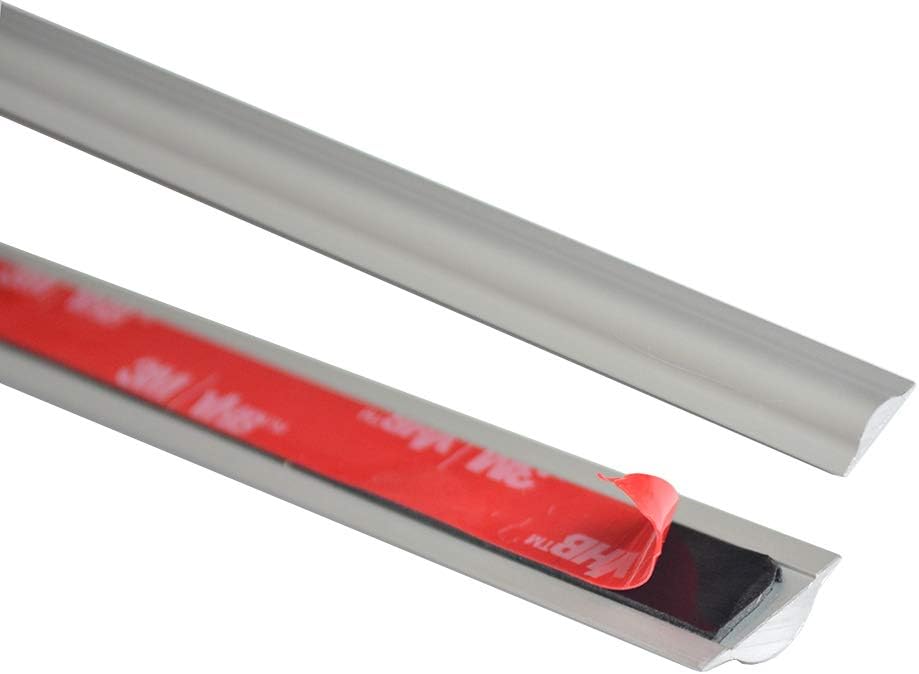

✔ x2 adhear floor rail
Product Features
• Material: Aluminium alloy

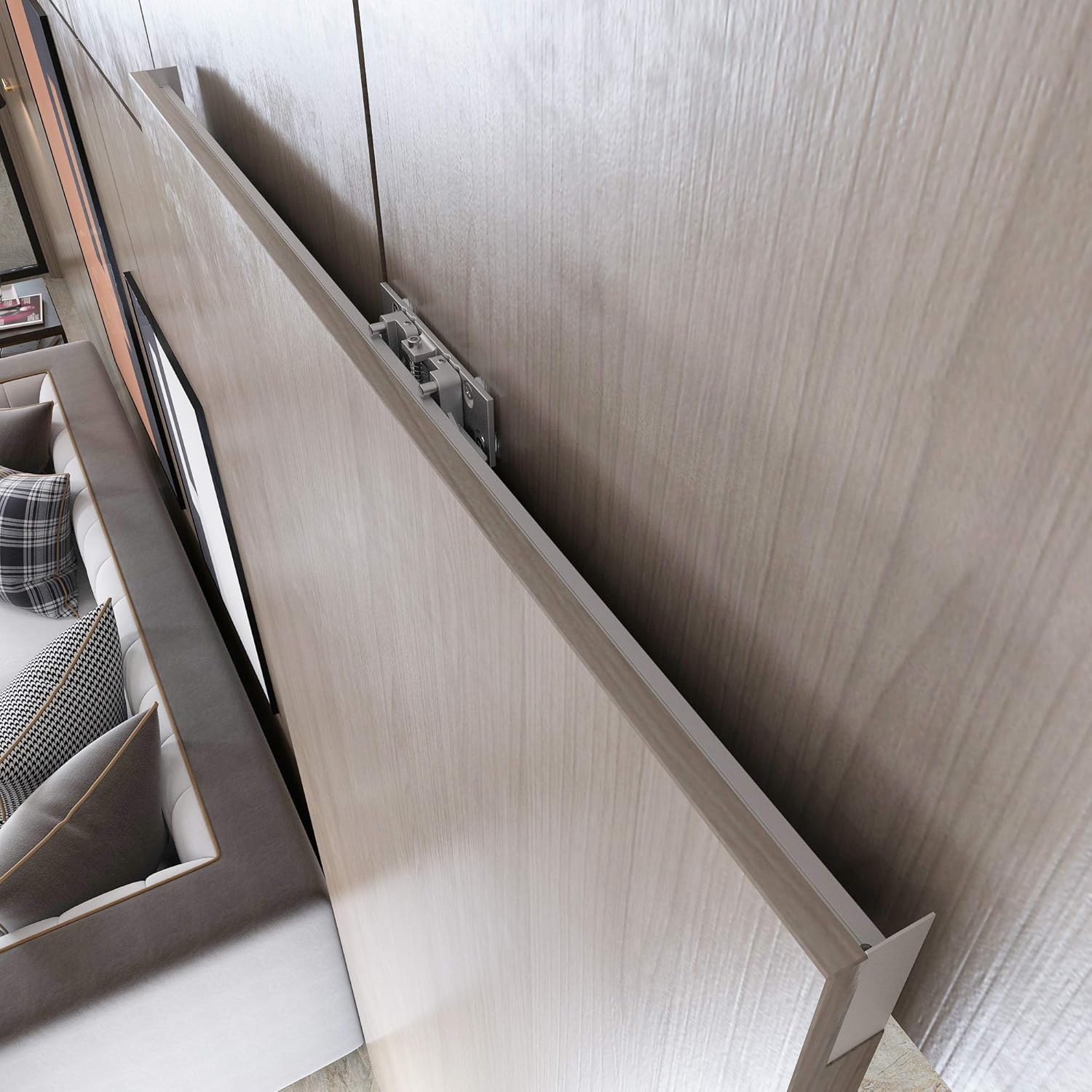

• Wall mount sliding system with invisible track in front
• Suitable for wood doors weighing up to 176 lb (80 kg)
• Suitable for door thickness ≥1 3/4"
• Fit door width up to 34"
• The track can be cut for smaller door panel

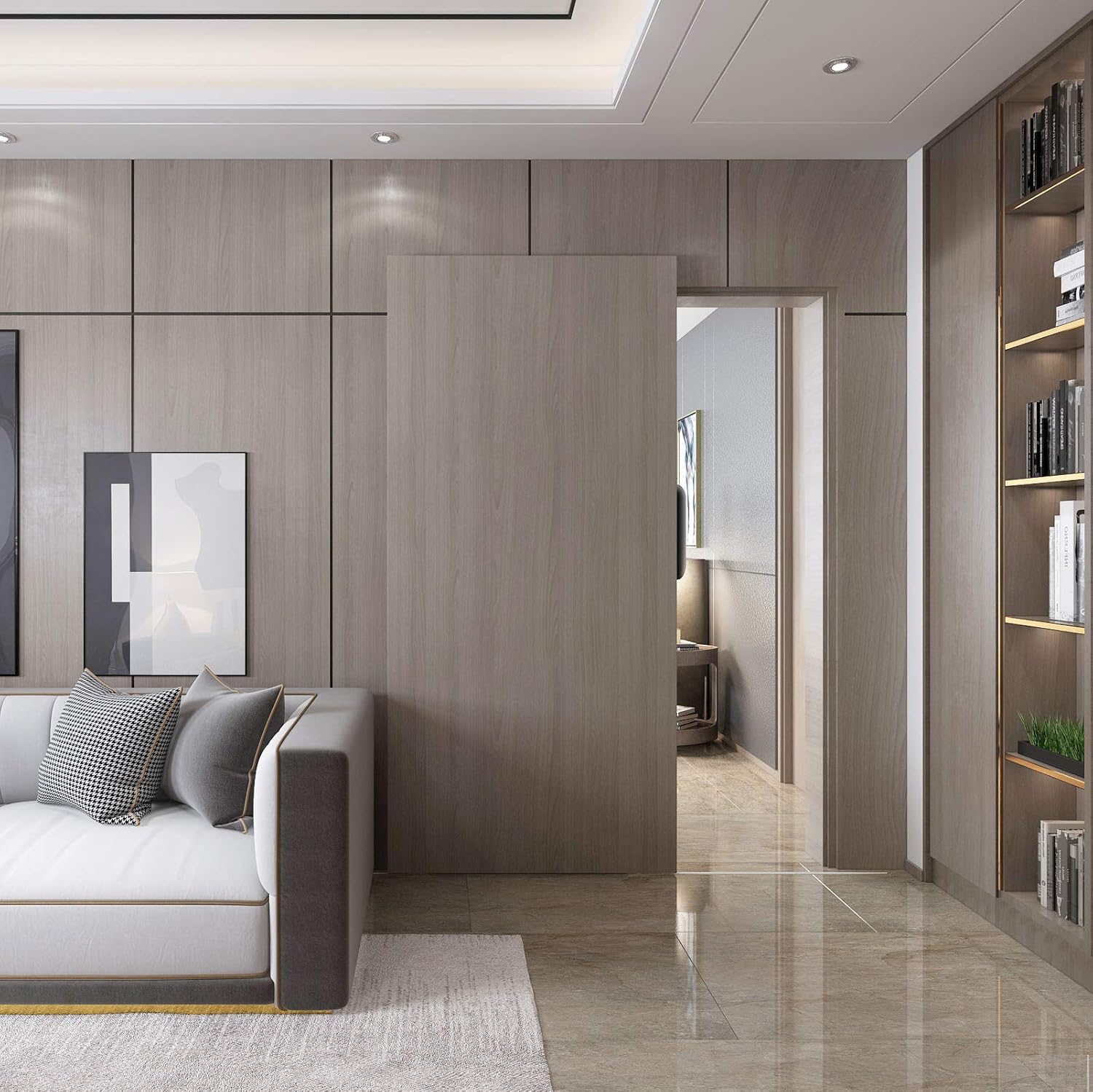

• Its unique hardware and concealed track create the illusion of a floating door.
• soft closing mechanism
Calculation of door dimension in relation to the wall opening:
To install this hardware correctly, you must have additional space above your door opening. For most barn doors, we recommend adding 1 inch of height and 2 inches of width to the door opening.
Standard example:
If your opening measures 24“ x 80”, you should order a 26“ x 81” door for use with traditional hardware.
However, this hardware requires a different height configuration: 4 additional inches of height must be added, not just one.
Example with this specific hardware:
For a 24“ x 80” opening, you should order a 26“ x 88” door.
Door drilling and preparation
This hardware can be installed on wooden doors or wood-framed doors (such as those with glass or mirror inserts), but requires specific drilling and cutting for proper installation.
- If you purchase this hardware together with your door (in the same order):The necessary drilling will be done at no additional cost. In this case, select the “Hardware Only” option from the options available above.
- If you purchase the hardware after purchasing the door: You must select the “Hardware with Drilling” option from the options available. This is because drilling holes in a door that is already in production requires additional work and incurs an extra cost.
